Fyne Audio FA502iC LCR

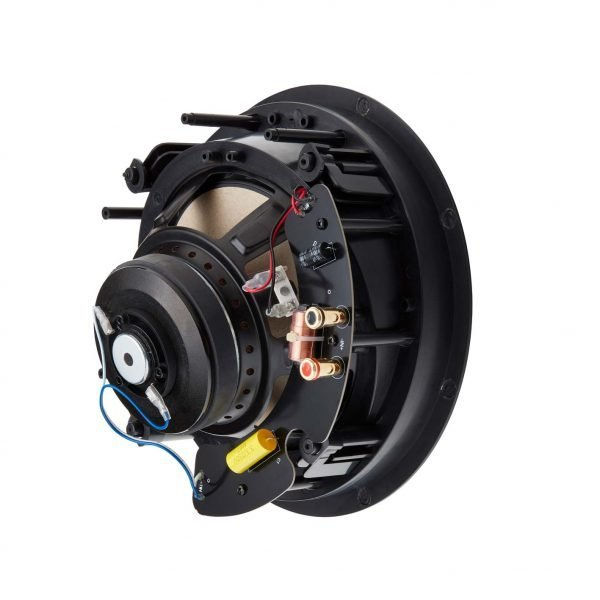

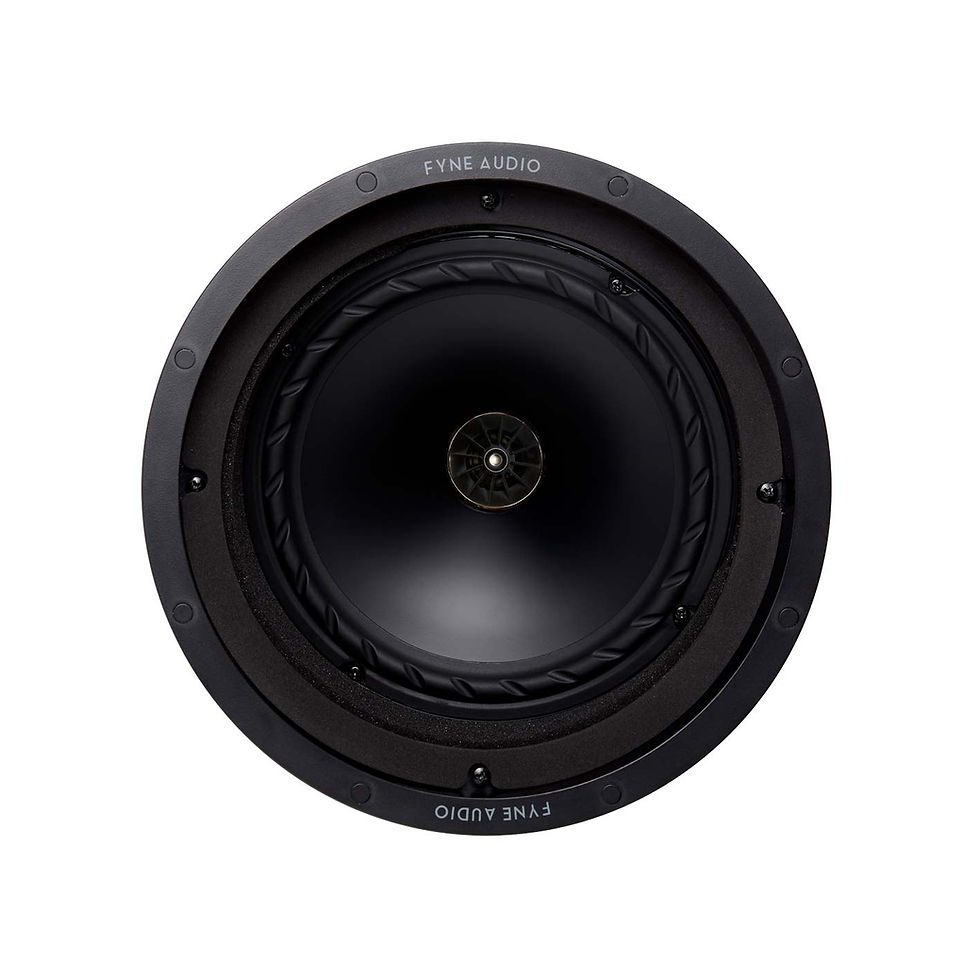

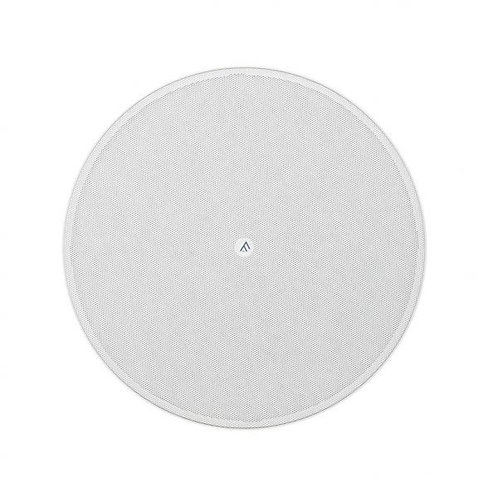

The LCR version of the prestigious FA502iC home install loudspeaker has been designed for custom installations where speaker placement is offset from the listening position. Ideal for Left, Centre and Right channels of home theatre systems, the 200mm (8”) IsoFlare driver is angled at 15 degrees to the mounting surface. The driver can be orientated in the round cut-out to angle the output directly towards the main listening position. With the same easy fitment, power and performance benefits of the standard FA502iC, the LCR model builds on the range’s versatility and is supplied with a paintable, low profile round grille.

Fyne Audio FA502iC LCR

S$600.00Price
Color: White
  • System Type 2 way IsoFlare loudspeaker for in-ceiling or in-wall application angled dispersion for LCR applications
    Recommended amplifier power (Watt RMS) 30 - 150
    Peak power handling (Watt) 300
    Continuous power handling (Watt RMS) 75
    Sensitivity (2.83 Volt @ 1m) 91dB
    Nominal impedance 8 Ohm
    Frequency response (-6dB typical in room) 35Hz - 34kHz
    Drive unit complement 1 x 200mm (8”) IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm titanium dome compression tweeter
    Crossover frequency 1.7kHz
    Crossover type Passive 2nd order low pass, 1st order high pass
    Dimensions - Dia x Depth 278 x 157mm (10.9 x 6.2”)
    Square grille dimensions Not Available
    Round grille diameter 288mm (11.3”)
    Cut-out diameter 255mm (10.0”)
    Depth behind mounting surface 155mm (6.1”)
    Clamp travel 0 - 26mm (0 - 1.0”)
    Suggested min volume 18 L
    Net Weight - Each 2.4kg (5.2lbs)
