Improving on the F502, the UK built SP edition uses the premium 200mm (8″) IsoFlareTM driver and 200mm (8″) bass/mid driver from the F702, featuring rigid multi-fibre cones and FyneFluteTM roll surrounds. The IsoFlare’s 25mm magnesium compression tweeter has a unique HF wave guide pole piece delivering an incredibly even, full-range frequency response and outstanding Hi-Fi musical imaging. The F502SP also benefits from the F700’s advanced crossover components and aluminium sandwich type plinth with BassTrax tractrix profile bass diffuser, re-engineered to precisely tune the F502SP’s more compact cabinet. The SP is available in high-gloss black and high gloss white as standard, or a luxurious deep gloss lacquered walnut veneer with a diamond machine cut finish on the aluminium driver chassis.

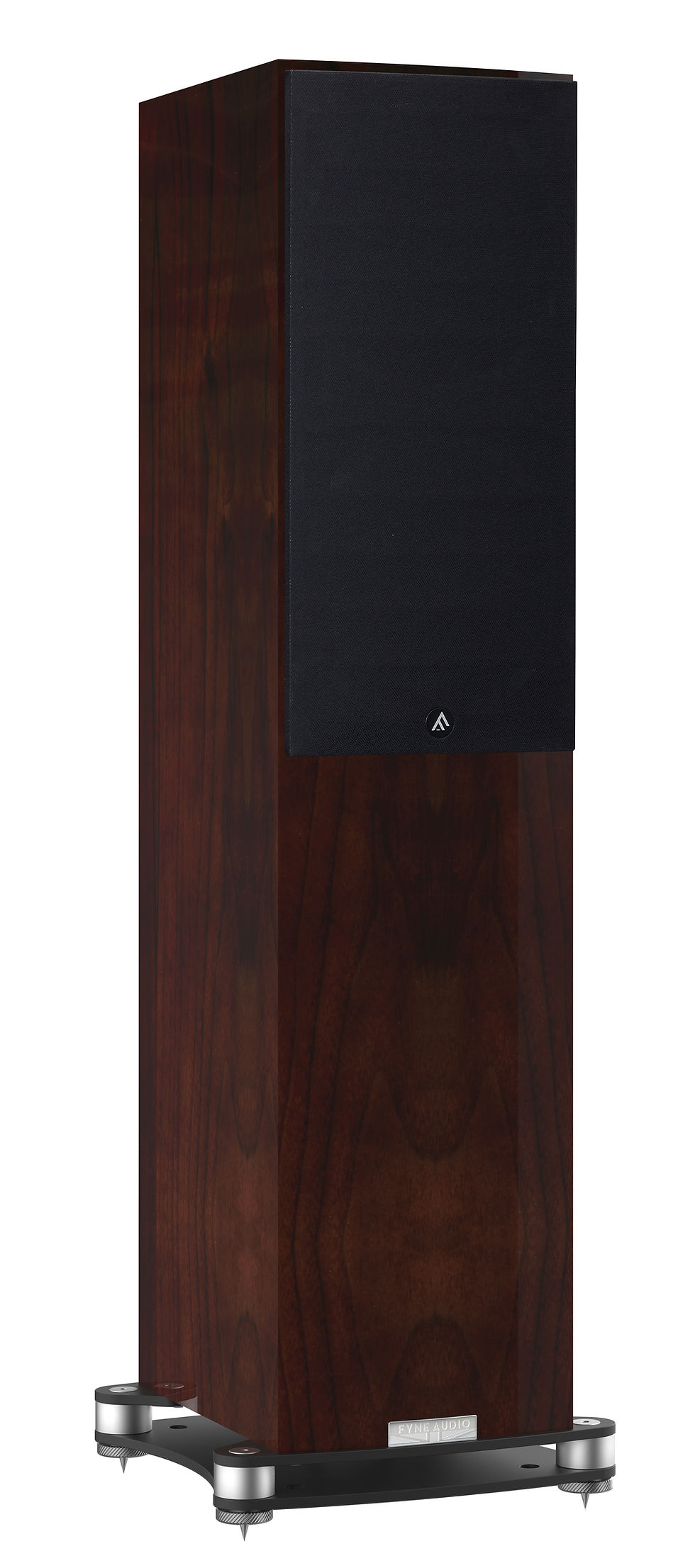

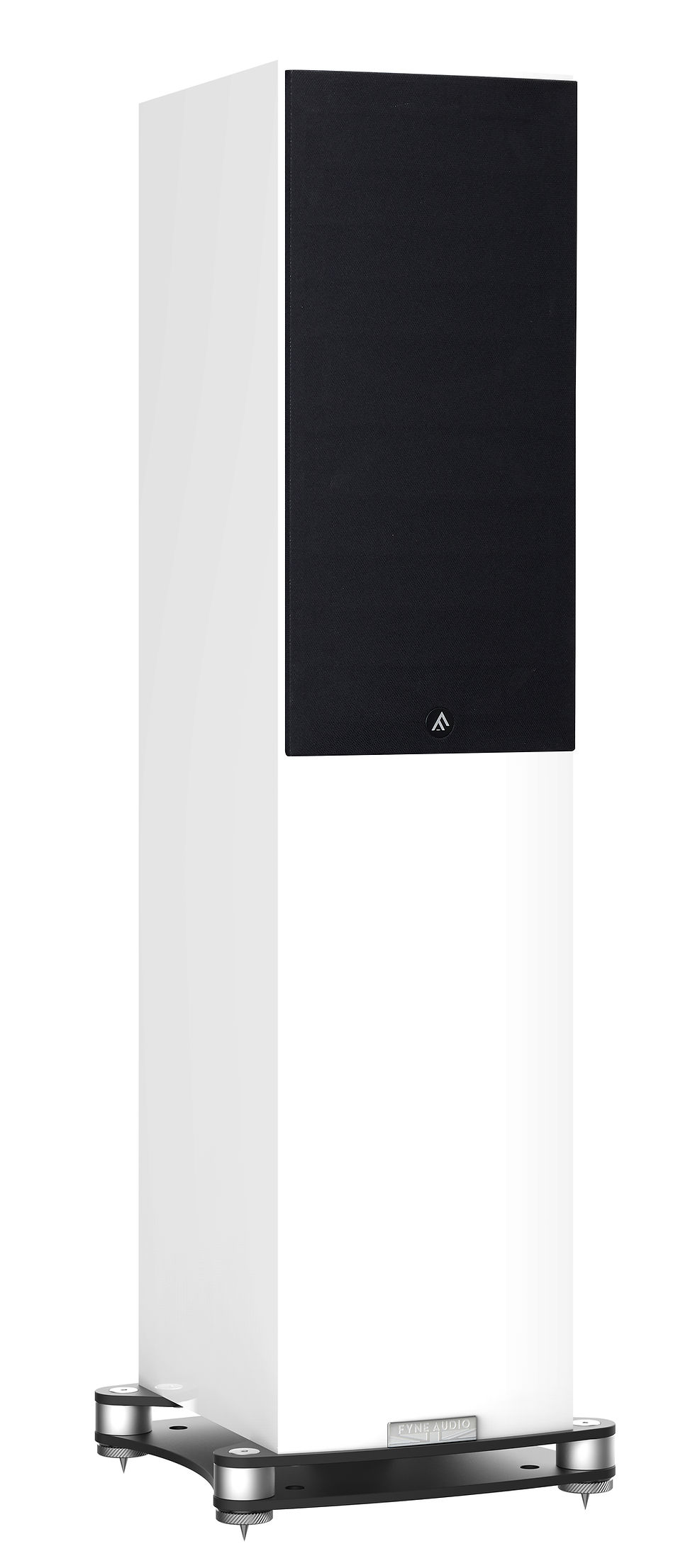

Fyne Audio F502SP
System Type 2 ½ way, downwards firing port, with BassTraxTM Tractrix diffuser*, twin cavity loading system Recommended amplifier power (Watt RMS) 30- 200 Continuous power handling (Watt RMS) 100 Sensitivity (2.83 Volt @ 1m) 92dB Nominal impedance 8 Ohm Frequency response (-6dB typical in room) 30Hz - 34kHz Drive unit complement 1 x 200mm IsoFlare point source driver, multi-fibre bass/ midrange cone, FyneFluteTM surround with 25mm magnesium dome compression tweeter, neodymium magnet system. 1 x 200mm multi-fibre bass cone, FyneFluteTM surround. Crossover frequency 250Hz & 1.7kHz Crossover type Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryo-Lite treated. Dimensions - HxWxD 1111 x 338 x 380mm (43.7 x 13.3 x 15.0”) Net Weight - Each 30.4kg (67.0lb) Finishes Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White
